Audi A4: Bulkhead

Audi A4 (B9) 2016-2024 Service Manual / Body / Body Exterior / Body Front / Bulkhead

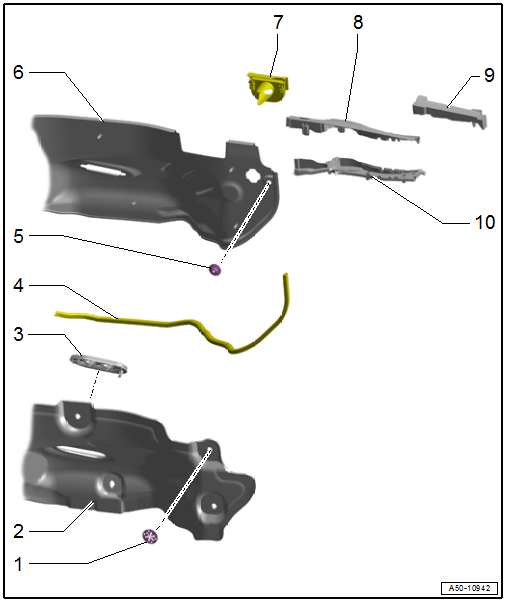

Overview - Bulkhead

Overview - Bulkhead

1 -  Lock Washer

2 -  Heat Shield

  • Overview. Refer to → Chapter "Overview - Heat Shield".

3 -  Pass-Through

  • For coolant lines
  • Can be replaced only with the heat shield
  • Equipped on some models

4 -  Seal

  • For the plenum chamber bulkhead

5 -  Nut

  • 8 Nm
  • Quantity: 2

6 -  Plenum Chamber Bulkhead

  • Removing and installing. Refer to → Chapter "Plenum Chamber Bulkhead, Removing and Installing".

7 -  Pass-Through

  • For the wiring harness

8 -  Upper Cover

  • For the plenum chamber end plate

9 -  Molded Part

  • For the plenum chamber end plate

10 -  Lower Cover

  • For the plenum chamber end plate

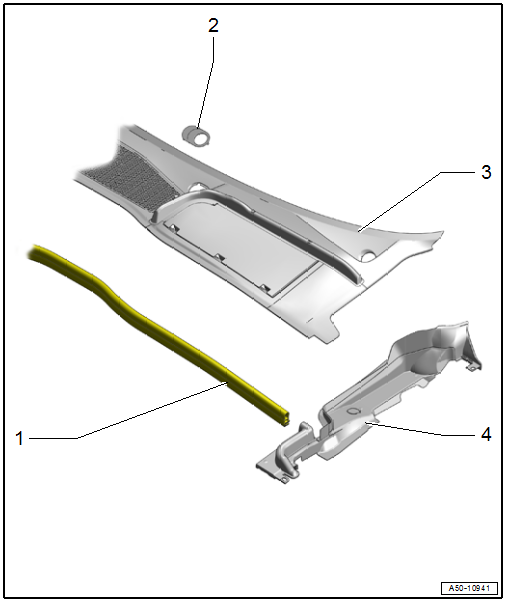

Overview - Plenum Chamber Cover

Overview - Plenum Chamber Cover

1 -  Seal

2 -  Clip

  • For the windshield wiper axle

3 -  Plenum Chamber Cover

  • Removing and installing. Refer to → Chapter "Plenum Chamber Cover, Removing and Installing".

4 -  Side Cover for Plenum Chamber Cover

  • Removing and installing. Refer to → Chapter "Plenum Chamber Side Cover, Removing and Installing".
