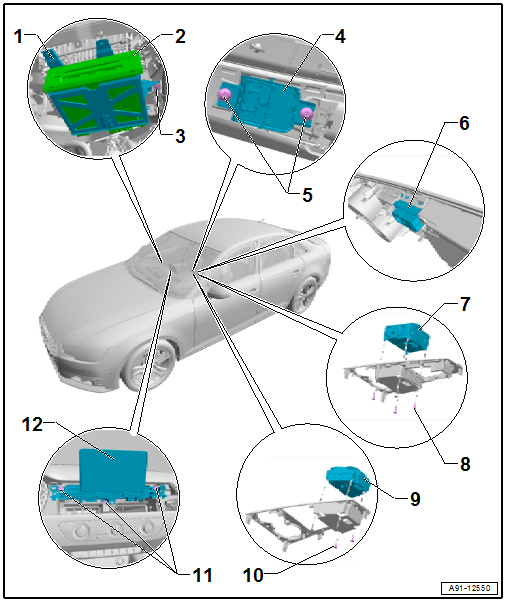

1 - Bracket
2 - Information Electronics Control Module 1 -J794-
3 - Bolt
4 - Driver Volume Control -E67-
5 - Bolt
6 - Multimedia Button Module -E817-
7 - Multimedia System Control Head -E380-
8 - Bolt
9 - Multimedia System Control Head -E380-
10 - Bolt
11 - Bolt
12 - Front Information Display Control Head -J685-
Infotainment System Display, Removing and Installing
The Front Information Display Control Head -J685- (Display Infotainment System) is located in the center of the instrument panel.
Removing
- Turn off the ignition and all electrical equipment and remove the ignition key.
- Remove the front passenger side instrument panel vent. Refer to → Body Interior; Rep. Gr.70; Instrument Panel; Instrument Panel Vent, Removing and Installing.
With removal from the front passenger side instrument panel vent the bolts are accessible.

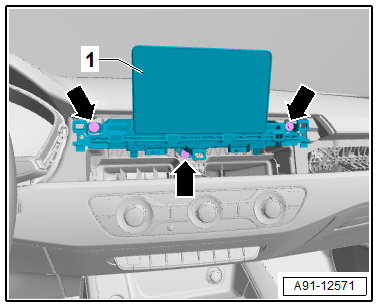

- Remove the bolts -arrows- and remove the Front Information Display Control Head -J685--1- from the instrument panel.
- Release and disconnect the connectors.
Installing
- Install in reverse order of removal. Note the following:
Tightening Specifications
Information Electronics Control Module 1 -J794-, Removing and Installing
Special tools and workshop equipment required
Note
If replacing the control module, select the "Replace control module" function for the corresponding control module on the Vehicle Diagnostic Tester.
The Information Electronics Control Module 1 -J794- is located in the glove compartment. The cover frame of the Information Electronics Control Module 1 -J794- is secured with the glove compartment. The glove compartment must be removed first.
Removing
- Remove any CD/DVDs and SD/SIM cards from the Information Electronics Control Module 1 -J794-.
- Turn off the ignition and all electrical equipment and remove the ignition key.
- Remove the glove compartment. Refer to → Body Interior; Rep. Gr.68; Storage Compartment/Covers; Glove Compartment, Removing and Installing.
The wires to the Information Electronics Control Module 1 -J794- are very short. For this reason the bracket must be removed first. With the removal of the glove compartment two bolts for the bracket are loosened.

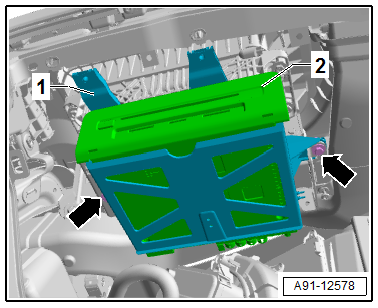

- Remove the bolts -arrows- and fold the bracket -1- downward.
- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794--2-.

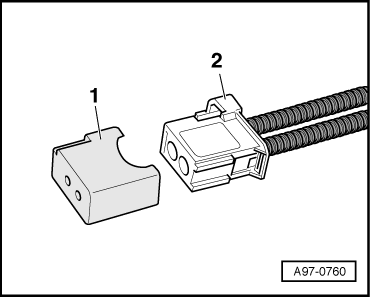

- Insert the Fiber-Optic Repair Set - Connector Protective Caps -VAS6223/9--1- onto the MOST Bus connector -2-.
- Insert the two clips from the Radio Removal Tool -T10057- into the release slots on the Information Electronics Control Module 1 -J794- until they engage. The points on the gripping eyelets face outward.
- Remove the Information Electronics Control Module 1 -J794- from the bracket at the Radio Removal Tool -T10057- grip eyes.
- Press the release tabs on the Information Electronics Control Module 1 -J794- and remove the Radio Removal Tool -T10057-.
Installing
- Install in reverse order of removal. Note the following:
- Connect all the connectors.
- Insert the Information Electronics Control Module 1 -J794- into the bracket until it engages.
Tightening Specifications
