Audi A4: ESD Work Surface -VAS6613-

Audi A4 (B9) 2016-2025 Service Manual / Electrical System / Electrical Equipment General Information / Wiring / ESD Work Surface -VAS6613-

  • The electro-static discharge ESD Work Surface -VAS6613- protect electronic components from getting damaged by an electro-static charge.
  • This makes is possible to perform repairs on sensitive electronic components on an open mat.
  • For more information as to what work can be performed on the ESD Work Surface -VAS6613-. Refer to the "Electrical Equipment" chapter in the repair manual.

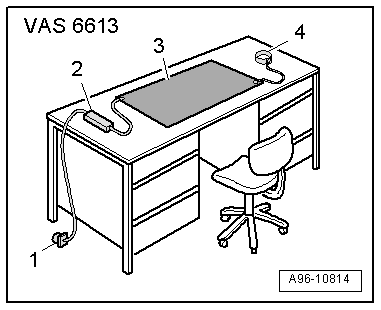

- Place the electro-static discharge mat -3- from ESD Work Surface -VAS6613- on a clean, dry table.

- Connect the Ground (GND) -2- to one of the buttons on the mat.

- Connect the GND connector adapter -1- to the adapter connector on an outlet with contact protection or connect the alligator clip to a ground in the building or a water pipe.

- Connect the wrist strap -4- to one of the buttons on the mat.

- Attach the wrist strap directly to your wrist - never to your shirt sleeve or jacket sleeve.

  Caution

If working on especially sensitive electronic component and with the pad exposed, use only non-magnetic tools, for example, a Wrench - Driver -T10072-.

A96-10814

Special Tools

Special tools and workshop equipment required

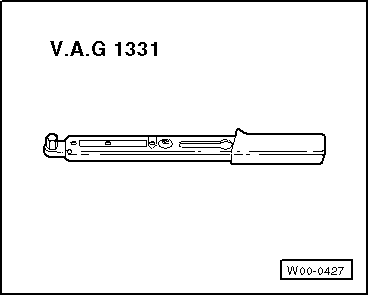

  • Torque Wrench 1331 5-50Nm -VAG1331-

W00-0427

  • Wiring Harness Repair Set -VAS1978A-

W00-10400

  • Wiring Harness Repair Set -VAS1978B-

W00-10782

  • Adjust the sliding stop in the Wiring Harness Repair Set - Wire Strippers -VAS1978/3- pliers jaws to 12 to 14 mm for the wire to be stripped.

N97-0016

  • To press the crimp connector, use the Wiring Harness Repair - Crimping Plier - Base Tool -VAS1978/1-2- with Wiring Harness Repair - Crimping Head - .35-2.5mm -VAS1978/1-1-.

N97-10491

  • Wiring Harness Repair Set - Hot Air Blower -VAS1978/14A- from the Wiring Harness Repair Set -VAS1978B-
  • Wiring Harness Repair - Blower - Shrink Element -VAS1978/15A- from the Wiring Harness Repair Set -VAS1978B-
  • Wiring Harness Repair Set VAS 631 003 -VAS631003-

W00-10782

  • Release Tool Set -VAS1978/35-

W00-10402

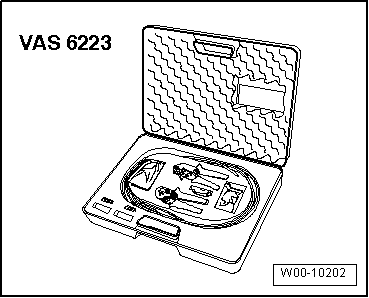

  • Fiber Optic Repair Set -VAS6223B-

W00-10202

  • Hose Cutting Pliers -VAS6228-

W00-10022

  • Contact Surface Cleaning Set -VAS6410-

W00-10546

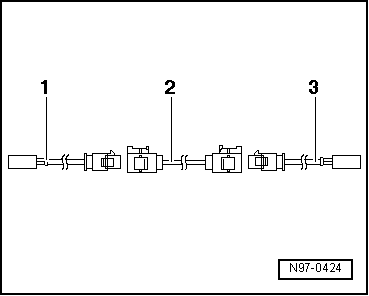

  • -1- Adapter wire, for connection to radio; length: approximately 30 cm
  • -2- Connecting wire, available in various lengths
  • -3- Adapter wire, for connection to antenna; length: approximately 30 cm
  • Contact Surface Cleaning Set -VAS6410-
  • Aerial Cable Repair Set -VAS6720-
  • Wiring Harness Repair - Blower - Shrink Element -VAS1978/15A- from the Wiring Harness Repair Set -VAS1978B-
  • Wiring Harness Repair Set -VAS631001-

N97-0424

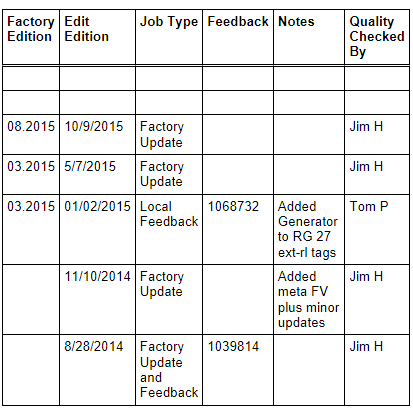

Revision History
